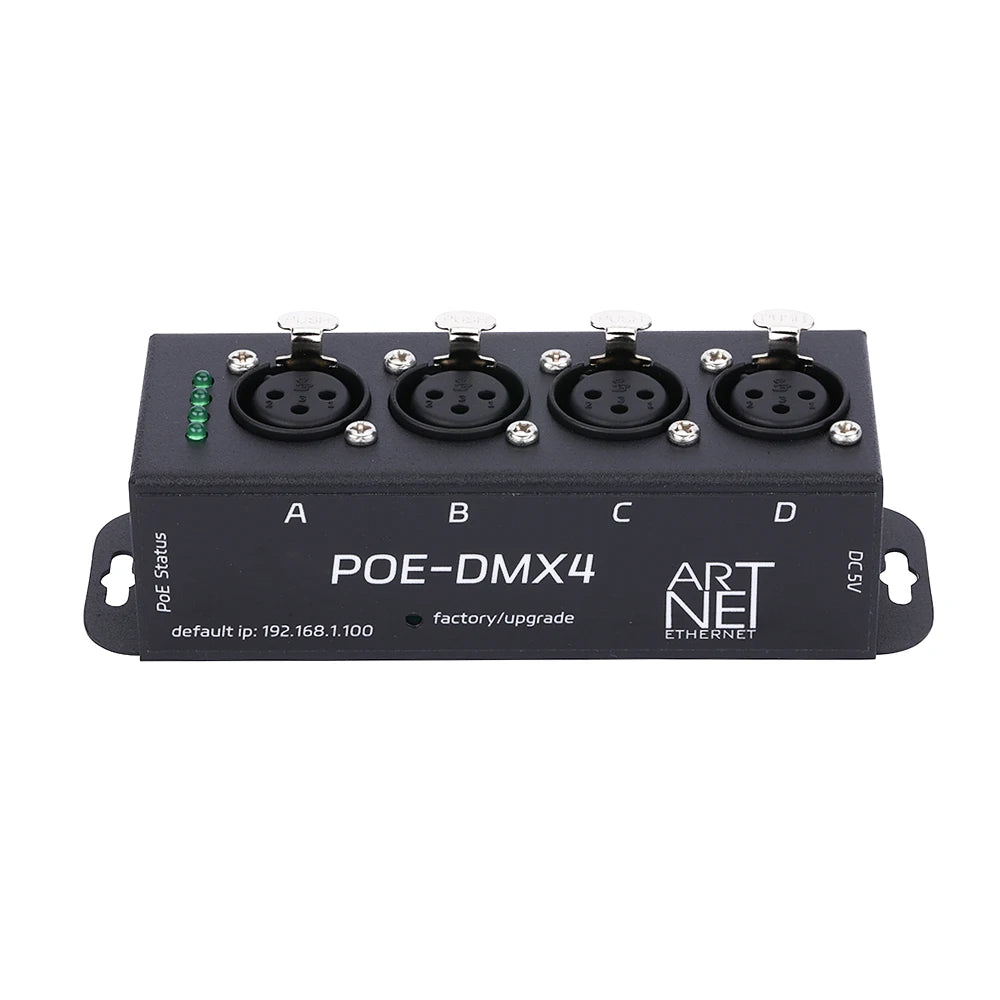

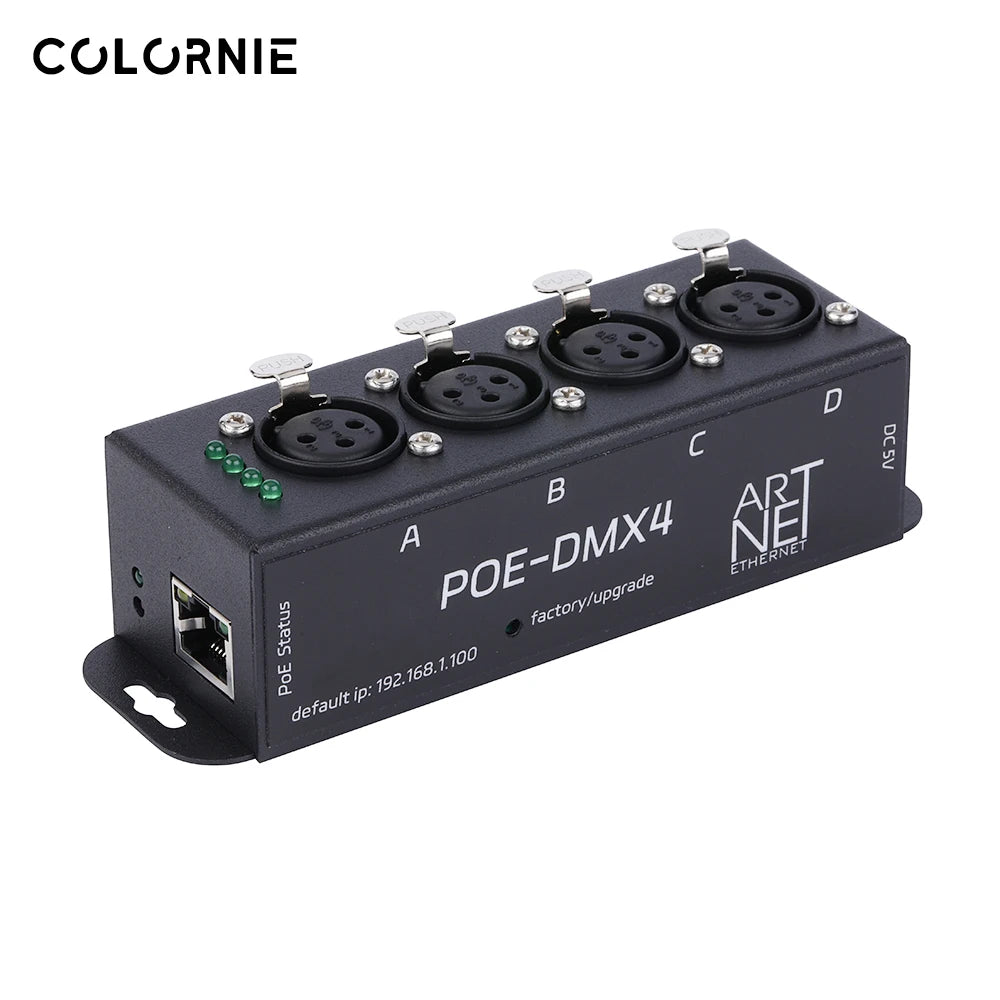

sACN /ARTNET DMX 4Port Network Box Gateway Controller Designed Ethernet To DMX512 Node Artgate 4 Universe Madrix/ FreeStyle

Product Description：

The product is a multi-protocol, compact and easy-to-use Art-Net controller that converts Art-Net or sACN to DMX512 or RDM.

It has two power options: POE and USB Type-C.

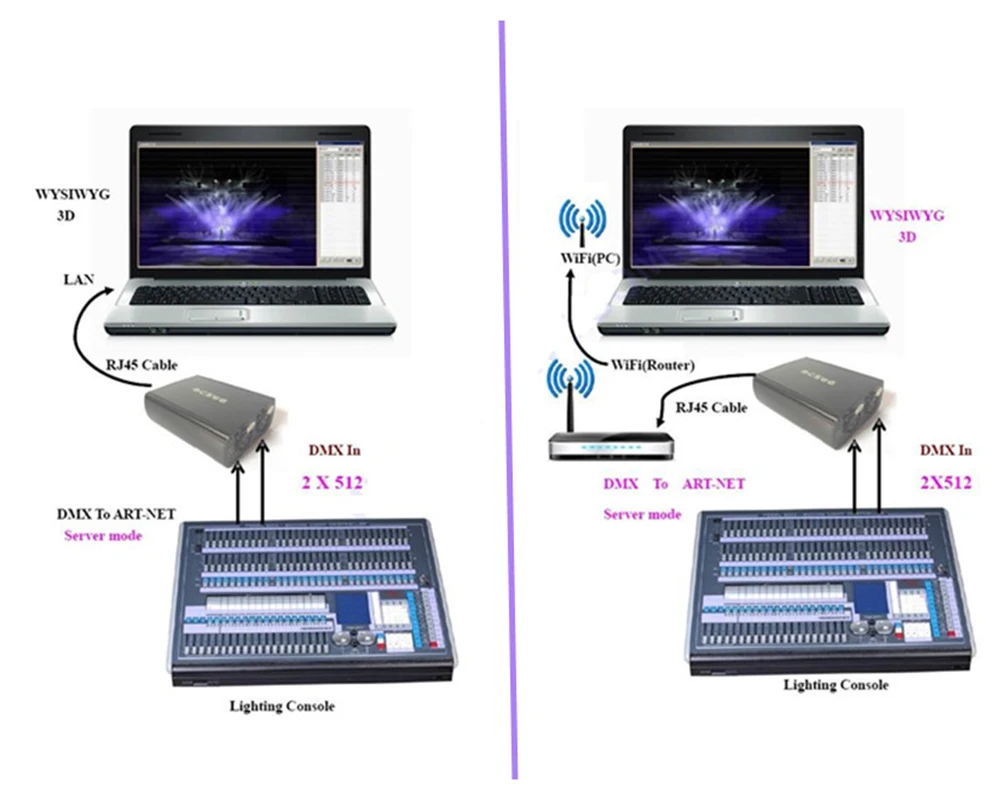

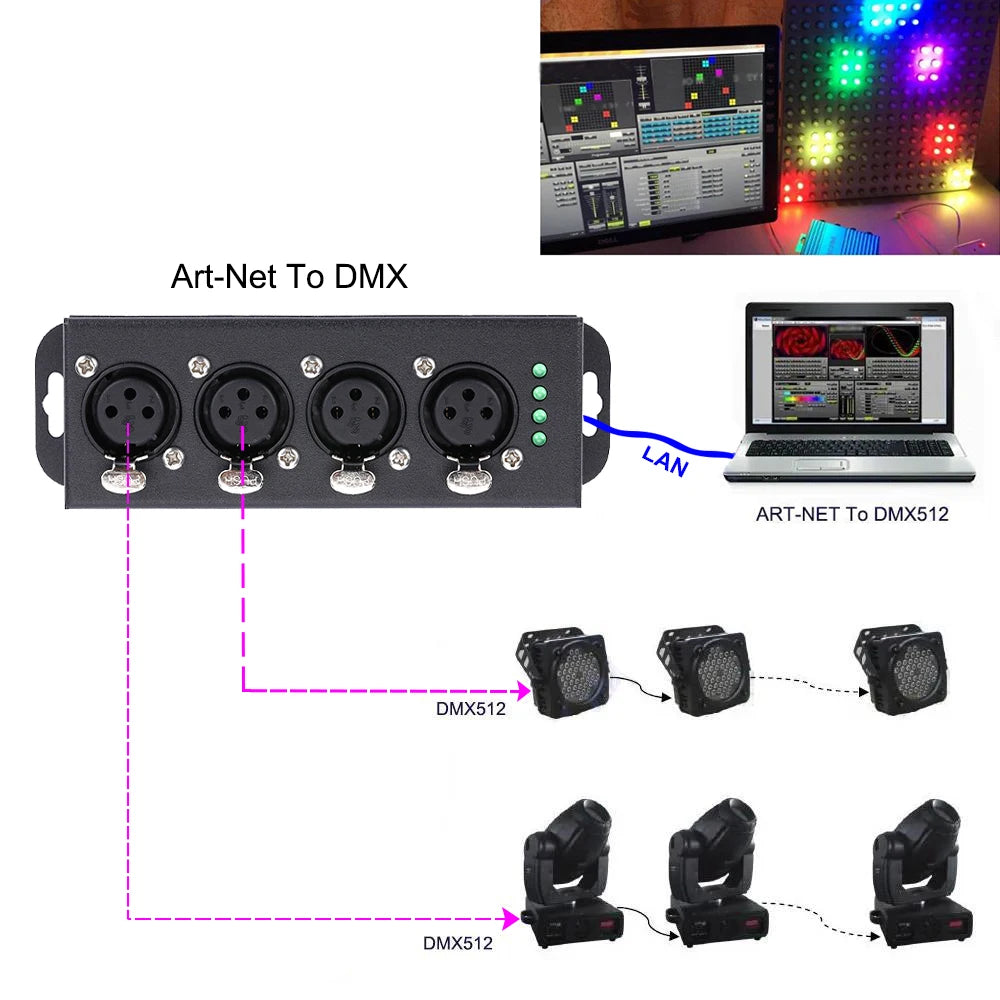

ArtNet 2048 is an Ethernet to DMX bi-directional converters. It provides bi-directional conversions from ArtNet to DMX512. The equipment with high-speed ARM processors, follow the ArtNet protocol standard provides an RJ45 network interfaces and standard DMX512 output interface. ArtNet-DMX highly compliant protocol standards, real-time, stable and reliable. It has been designed through a Ethernet DMX transmission, it has two Operation Mode: INPUT MODE (SERVER MODE), and OUTPUT MODE (NODE MODE). In OUTPUT MODE, the device via the Ethernet receives Art-Net signals and convert to dmx512 signals. In INPUT MODE, the DMX512 signal is converted to Art-Net signal and be transmitted over the Ethernet.

Features:

The upgraded version in 2024, is a full-featured, cost-effective ArtNet extender

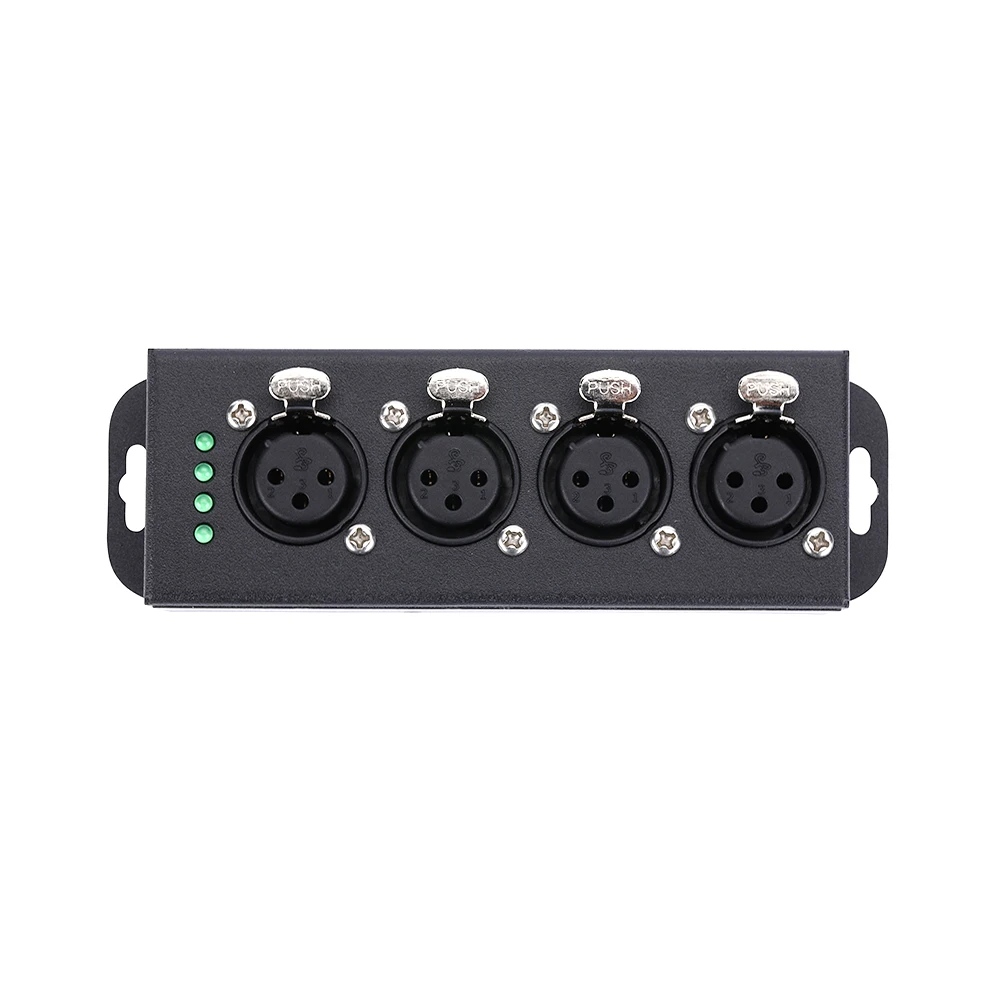

Four-Universe bi-directional DMX / E1.20 RDM female XLR 3pin

One PoE RJ45 port supporting IEEE 802.3af (10/100 Mbps)

One Type-C DC 5V power input

Support RDM over Art-Net & RDM (E1.20)

Support Ar-Net, sACN

Built-in web interface parameter configuration
Program upgrade through PC software

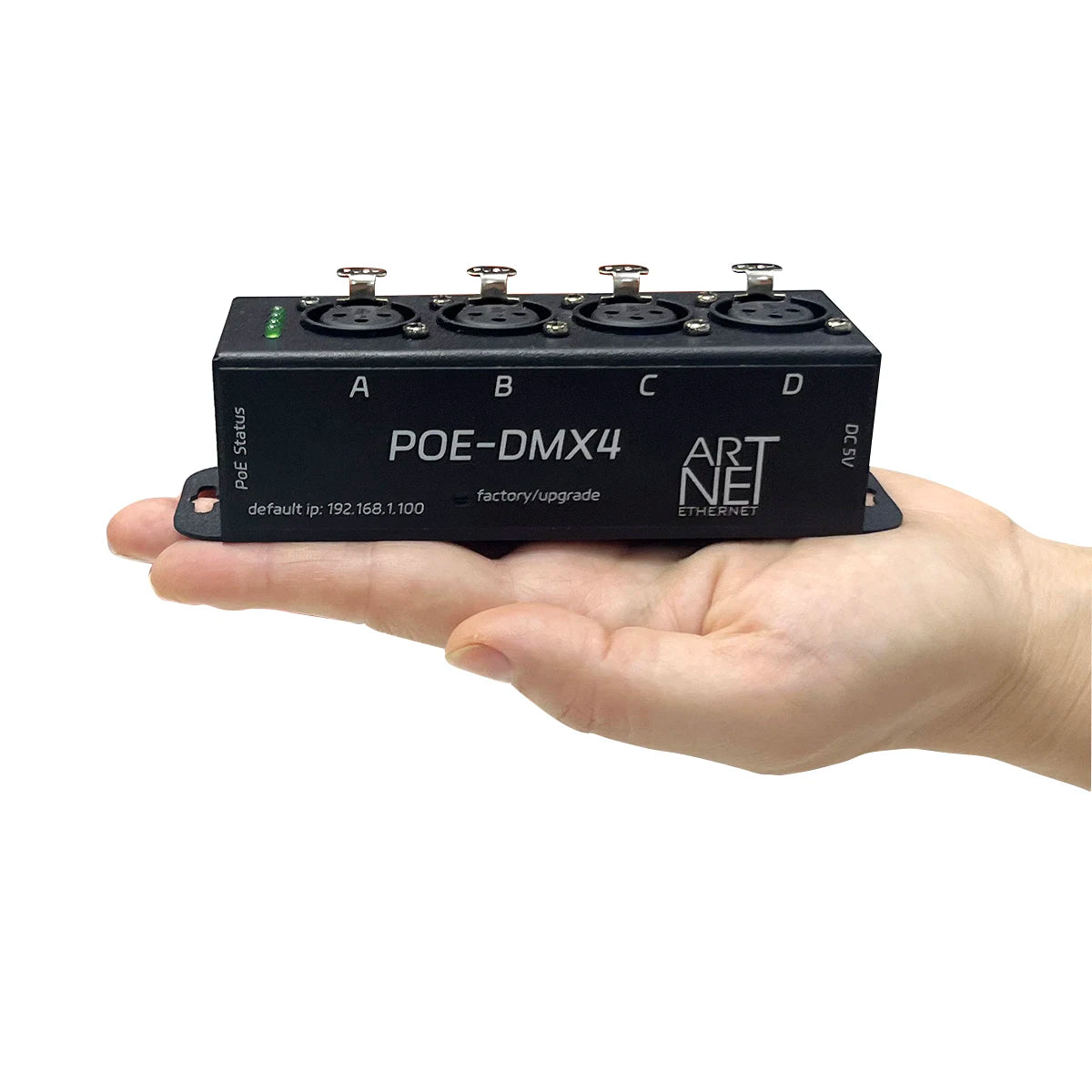

The factory default IP is 192.168.1.100, mask: 255.255.255.0 (the IP address can be modified by our web interface, or by the dmxworkshop software on the official website).

Four Universe: 4 x DMX512 Out (3pin) with Art-Net, control up to 2048 channels.

The Artnet-2048 Controller Supports dongle software such as GrandMa2, Tiger Touch, Madrix, etc.

Parameters：

Power supply: DC5V

Complete power: 3W

Digital signal: DMX512/1990

Interface type: isolated output for each DMX signal, built-in TVS and self-recovery protection circuit.

DMX signal (output/input) connector: XLR-3 core XLR socket

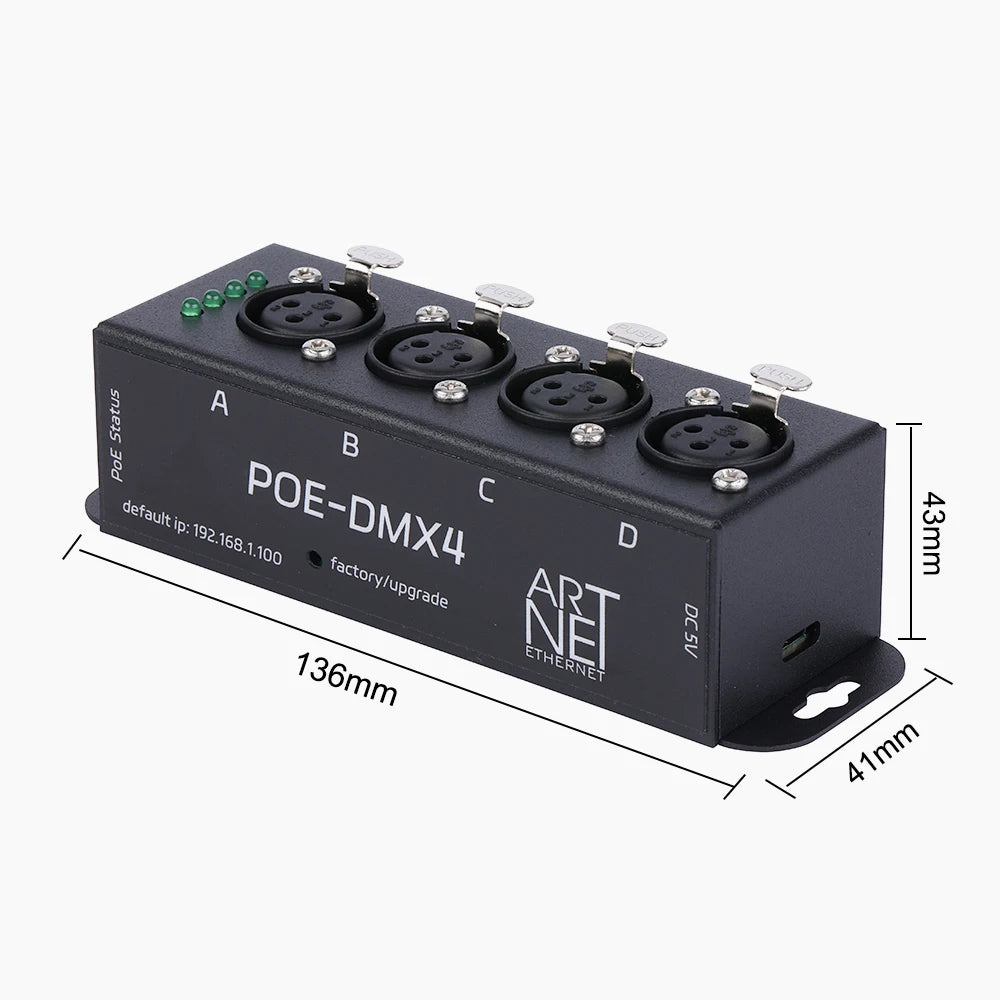

Dimensions: 136*43*41 (mm)

Net weight: 0.22Kg

G.W weight: 0.5Kg

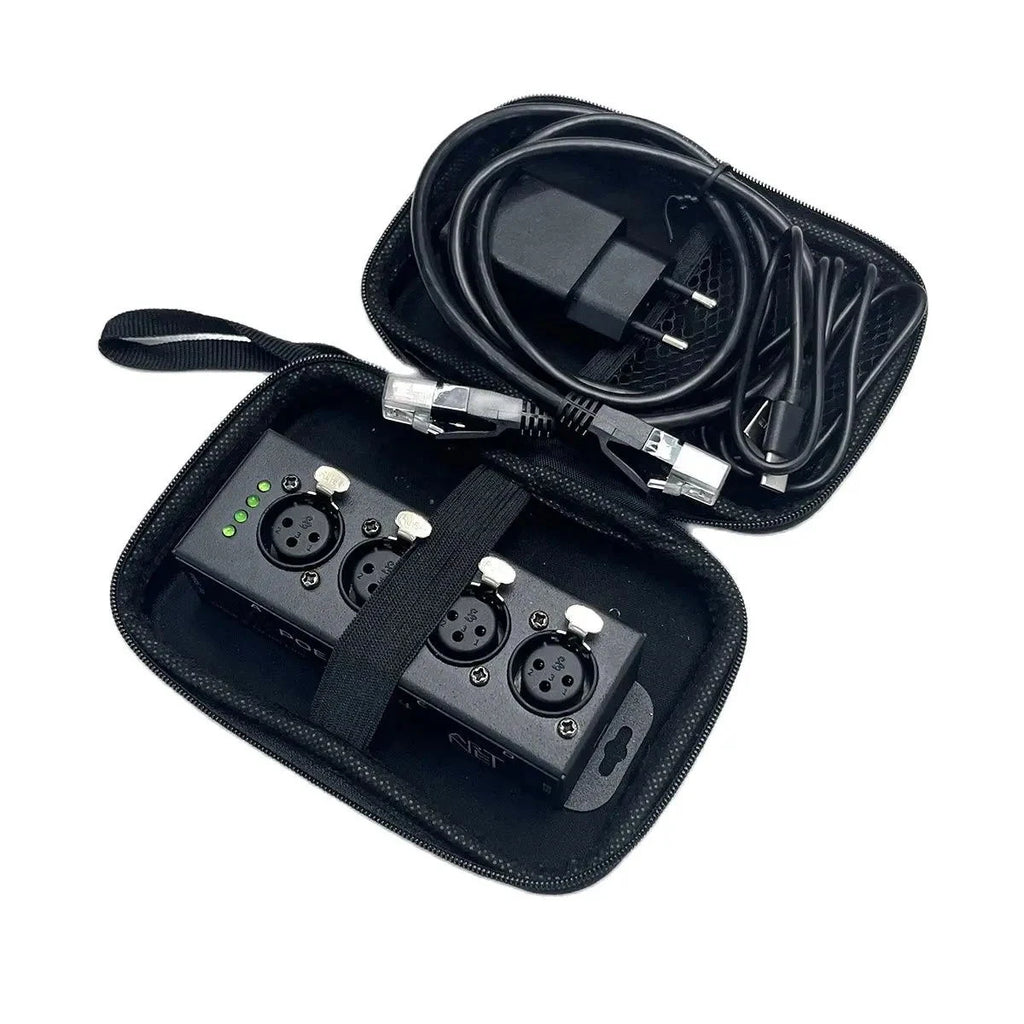

Packing list for each unit:

1 x 4 Way artnet controller
1 x internet cable
1 x Type-C data cable
1 x USB 5V adapter
